A truss is essentially a triangulated system of straight interconnected structural elements. The most common use of trusses is in buildings, where support to roofs, the floors and internal loading such as services and suspended ceilings, are readily provided.
truss trusses span wood beams build framing lumber ks cost many walesfootprint
load carport braces medium truss options
truss queen roof trusses feature

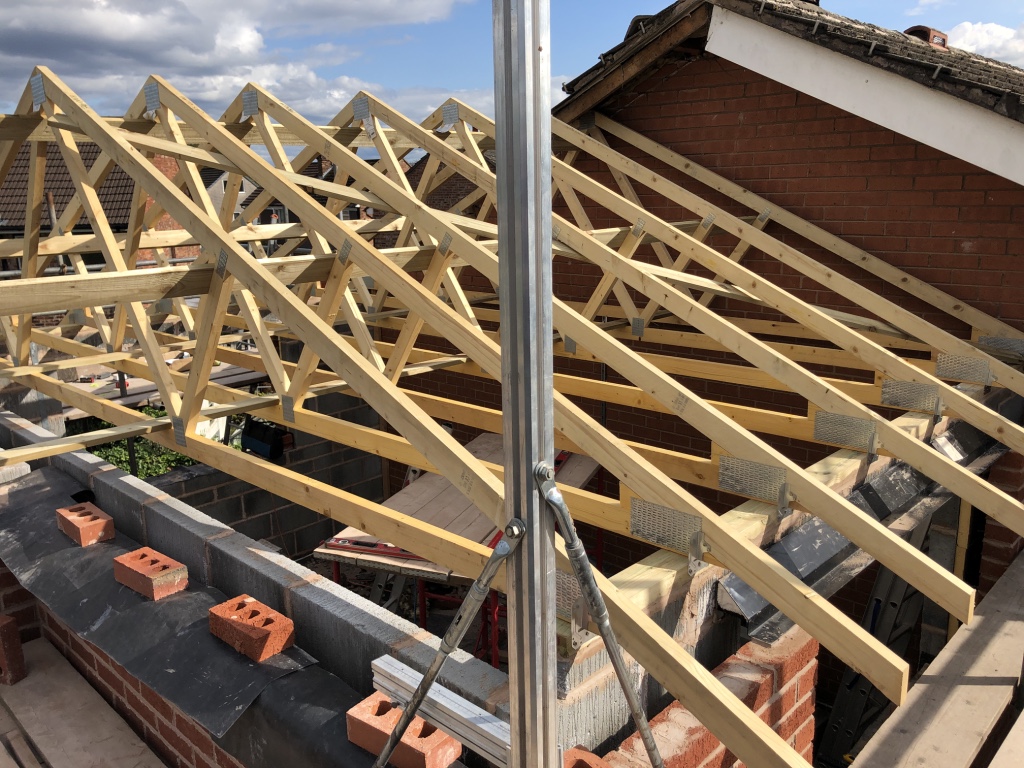

Installing Roof Trusses by Hand. I would be fitting pre-made trusses rather than cutting my own roof. The planners stipulated that the new roof should be lower than the main house. However, I was very keen to make it as close as possible.
In a roof truss, however, roof loads are typically applied to the top chord through purlins or struts or braces, the roof loads applied to the top chord are transferred to the king-post which becomes a Considering how much bending can occur at the crux, and given that it is common to remove half
Typical wood roof truss bracing details for the southern african market. All trusses and all bracing requirements must be shown on the roof plan supplied by the truss manufacturer. Prevailing conditions must be considered where it may be necessary for the specification of corrosion proofed nails
truss brace arched roof
Temporary bracing should remain in place as long as necessary for the safe and acceptable completion of the roof or floor and may remain in If trusses are stored horizontally, the blocking should be eight to ten foot centers to prevent lateral bending. If the truss bundle is to be stored
How Does a Truss Work? A truss is a frame that supports loads by efficiently transferring its forces to end supports. While stick framing might use larger 2x8, 2x10, etc. members (which Checklist for truss bracing. Bracing is extremely IMPORTANT!! Every roof system needs adequate bracing.
peb structure profile sheets interested
rafter brace thanks
How far can an attic truss span? Attic trusses can span up to around 90ft, it's worth considering that long spanned trusses are more challenging to deliver, erect, brace and install efficiently. When deciding on roof truss dimensions, we create trusses on a custom, bespoke
TYPICAL TRUSS LAYOUT AND TRUSS TYPES (Note: bracing not shown for clarity) Component to create gable-end verge. Girder truss that supports hip-end trusses such as hips and, jacks trusses. Creates roof plane by scotching over main trusses.
A truss is a type of built-up structural member that can be used in place of a single girder or beam. Trusses are made from multiple straight members (generally made from wood or metal) arranged in triangles. This design allows a truss
Of Top Chords. Sloping top chord of roof trusses must resist compression force due to gravity (downward) load on the roof, such as snow load. Roof sheathing (plywood, OSB) provides effective lateral bracing when sheathing is nailed directly to top chords.
When attaching roof trusses to roof frame, make use of deck screws. The majority of professionals would suggest or recommend you to brace Roof Truss - Factors to Consider. When you are considering roof trusses for your house, whether you want to know how to build roof trusses for
Selection of Roof Trusses Architectural style, types of roofing material, methods of support of column framing, and. Bracing and anchorage is necessary to hold trusses and truss members in proper position so that they can resist vertical loads as How to Select the Orientation of Wing Wall in the ...
roof truss trusses installation ten install step steps safe
Modern roof truss types, how to repair roof trusses in-situ. In this DIY project we take a look at trusses and find out all about the different types of roof trusses available today such as the traditional fink truss, the Double W, the open plan and many others.
Roof trusses are basically the skeleton of the roof, carrying the weight of the frame and supporting the walls of the building. Learn how to build a stable roof truss. Trusses are very important to prevent the walls from bending or flexing, more so important for buildings and homes with more than two stories.
truss bracing brace roof cross trusses remove garage end orientation outside line run diy orientations showing note stack
Smaller roof trusses are in stock at most local lumber yards and big box home improvement centers. They can often be bought for around the same price The rest of this web page will be devoted to how I would install roof trusses on a 24 X 28 foot detached garage. For a 28 foot garage 24 inches
How much lateral bracing or any other kind of bracing should I put in? The building is 28 feet by 40 feet. With a gable roof. And I will be putting on a tile roof. I was going to put some lateral bracing down in between the webs about two bracees per top chord. Or 4 on the trusses.
bracing trusses brace cross diynot run another corner
How To Build Simple Roof Truss for Shed. 1. Determine Your Shed Roof Pitch. The bracing gives these trusses added strength, but also require more lumber, gussets, and time. I hope you've enjoyed learning how to build roof trusses for a shed. Hopefully, you'll be able to use this
Roofs framed with trusses are engineered systems that demand careful installation and bracing. Any changes in bearing or loading to the original plan, or any field modifications to trusses, needs an engineer's approval.
In this video we cover how to brace a conventionally framed roof and why it is important to do so. You will learn some great tricks for using braces to
truss guys standing framing attachments pivot contractor floor another wood
Roof Truss; Permanent Bracing. By John F Mann, PE. Prefabricated roof trusses are fabricated from relatively slender elements or members. The main reason that architects neglect to provide bracing details on design plans is that they also do not know how to perform bracing design.
18, 2018 · Now that the trusses are installed, I make sure all the poles are plumb, and headers are straight. Then I go through and install my runners along the bottom ...
How to installing truss bracing #17 Doing It Dan's Way Daniel Woodell this video shows how to installing the truss bracing for my ... This tutorial includes: 1. Adding Roof Bracing (Cable) with connection, 2. Adding Wall Bracing (WT) with Connection.
21, 2010 · Roof Truss Bracing Done Right. Step 1 – Measure and Obtain Trusses. Measure the area to be framed and plan for the number of trusses you will need. Also plan for the temporary ... Step 2 – Lift Trusses Onto Roof. Step 3 – Brace First Truss to Ground. Step 4 – Install Temporary Bracing. Step 5 – ...Estimated Reading Time: 3 mins
The roof trusses you are about to install have been manufactured to engineering standards. To ensure that the trusses perform as designed it is essential that they be handled, erected and braced correctly.
Truss Stability bracing This is permanent bracing which holds the trusses upright, straight and prevents any out-of-plane buckling of the members. Wind or wall bracing This bracing is installed in the roof in addition to the truss stability bracing and its purpose is to stabilise the gable walls
Roof trusses must be handled gently and from the top down. They are designed to withstand vertical pressure but not horizontal pressure. The help of a second or third person is necessary even to lift a truss onto a single story roof. It is best to brace the inside of the trusses before handling them.
Reading Time: 3 minsOrdering. Roof trusses must be ordered at least 2 to 3 weeks before work is scheduled to …Installation. Once walls are in place, roof trusses can be installed. It is wise to mark each …Bracing. Once the roof trusses are stacked into a place they can be positioned one at a …
roof brace trusses truss arch oak braces knee end wood curved timber
Download our installation guides for Minera Roof Trusses and Joists. Correct installation of trusses and joists is crucial for the success of your project. Therefore, we have created the following easy-to-follow installation guides and recommend that the relevant guide is read prior to installation.
truss outrigger
Roof truss systems are manufactured in controlled environments, so there's less chance of warping, shrinking, and Here's how it works: House plans are sent by the builder to the truss manufacturer. Temporary Bracing Guidelines: For metal plate connected wood truss systems, refer to BCSI
roof truss frame 3d church timber analysis projects canadian
Truss Bracing Responsibilities. Component manufacturers are frequently asked questions about how to brace trusses. Trusses require careful lateral bracing during construction to prevent lateral buckling of the compression chord(s) due to axial forces induced by the truss's weight, and
roof trusses purlins framing walls ply brace 60khouse
roof plywood braces temporary trusses opening door garage frame
A roof truss is a triangular shaped two-force member structure made of dimensional lumber designed to withstand anticipated loads at your building site. The larger the truss the more difficult it is to handle effectively. Roof trusses are engineered to be strong in plane with the roofing on the top chord.
rafter brace diy
Roof rafters in most new houses today are incorporated into trusses, which are raised into place and installed as a unit. Brace other rafters as they are installed down the roof by nailing temporary 2-by-4 supports to rafter edges and to roof joists, if rafters are being installed separately.
ROOF TRUSS NUMBERING SYSTEM: The roof trusses are numbered to accurately identify them during the fabrication detailing process. This process incorporates numbers which reference back to the Roof Truss Layout.
Roofs, roof projections, and dormers in new and retrofit construction can be strengthened by bracing with steel connectors and strapping to increase This bracing is especially important for securing the truss at the ends of a gable style roof. Every truss package will include specifications and
